NumPy Broadcasting and Vectorization

python numpy broadcasting and vectorization requires a clear understanding of the core syntax, runtime behavior, and practical implementation patterns demonstrated in the examples below.

When you write Python loops over NumPy arrays, you leave most of the performance benefit on the table. NumPy's real power comes from broadcasting and vectorization: operations that work on entire arrays without explicit Python-level iteration. This article explains how both work, when to use them, and where they commonly break down.

Why Loops Slow Down NumPy Code

NumPy is fast because it delegates heavy computation to compiled C code operating on contiguous memory blocks. A Python for loop, however, forces the interpreter to execute each iteration as a separate Python bytecode step, which defeats that advantage. Even a simple operation like adding two arrays element-wise becomes slow if you write:

import numpy as np

a = np.arange(1000)
b = np.arange(1000)
result = np.empty(1000)
for i in range(len(a)):
    result[i] = a[i] + b[i]

This loop performs 1000 Python-level operations, each with type checks and function call overhead. The vectorized equivalent, a + b, does the same work in a single C-level pass. The performance gap grows with array size, and the difference is not just about speed—it also affects memory efficiency because vectorized operations avoid creating intermediate Python objects.

What Broadcasting Means in NumPy

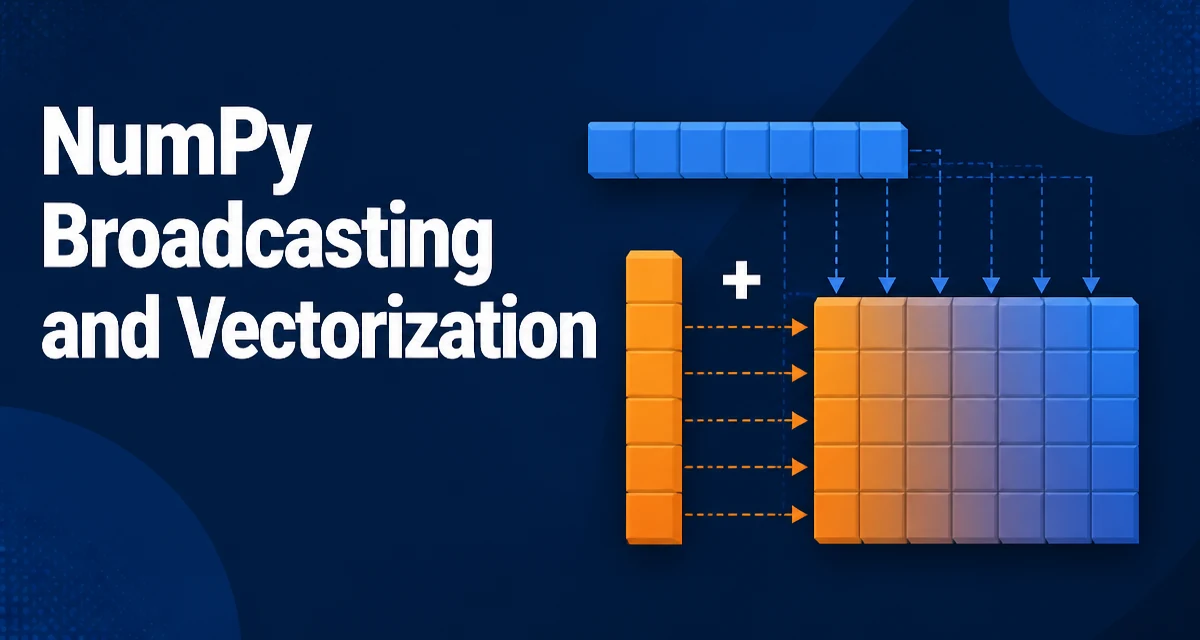

Broadcasting is NumPy's mechanism for performing operations on arrays of different shapes. Instead of requiring both arrays to have identical dimensions, NumPy aligns their shapes from the trailing dimension backward and expands dimensions of size 1 to match the other array. This lets you combine a scalar with an array, or an array with a smaller array, without explicit replication.

For example, adding a scalar to an array works because the scalar is broadcast across all elements:

arr = np.array([1, 2, 3])
result = arr + 10  # array([11, 12, 13])

Similarly, you can add a row vector to a 2D array. The row is broadcast down the rows:

matrix = np.array([[1, 2], [3, 4]])
row = np.array([10, 20])
result = matrix + row  # array([[11, 22], [13, 24]])

Broadcasting is not a runtime copy operation in the usual sense; NumPy uses striding to apply the smaller array across the larger one without allocating extra memory. This makes the operation both fast and memory-efficient.

The Broadcasting Rules

NumPy follows three specific rules when aligning shapes:

1. If the arrays have different numbers of dimensions, prepend the shape of the smaller array with 1s until both have the same length.
2. Compare the dimensions from the trailing (rightmost) side. Two dimensions are compatible if they are equal, or if one of them is 1.
3. If the dimensions are not compatible, a ValueError is raised.

Here is a practical example. Suppose you have an array of shape (3, 1) and another of shape (1, 4). The alignment works as follows:

• (3, 1) and (1, 4)
• Compare trailing dimensions: 1 vs 4 → compatible because one is 1.
• Compare next: 3 vs 1 → compatible because one is 1.
• Result shape is (3, 4).

a = np.array([[1], [2], [3]])      # shape (3, 1)
b = np.array([[10, 20, 30, 40]])   # shape (1, 4)
result = a + b                     # shape (3, 4)

The output is a 3×4 matrix where each column is the sum of the corresponding column of b with each element of a. This pattern is common when you want to apply a vector of parameters to a matrix of data.

The table below summarizes common shape combinations and their broadcast results:

In the last row, the trailing dimension of (3, 2) is 2, but the trailing dimension of (3,) is 3. They are not equal, and neither is 1, so broadcasting fails.

Vectorization: Replacing Loops with Array Operations

Vectorization is the practice of expressing operations as whole-array expressions instead of explicit loops. It goes hand in hand with broadcasting because many vectorized operations rely on broadcasting to combine arrays of different shapes.

A classic example is normalizing a matrix by its column means. Without vectorization, you might write:

means = data.mean(axis=0)
normalized = np.empty_like(data)
for i in range(data.shape[0]):
    normalized[i] = data[i] - means

The vectorized version uses broadcasting to subtract the 1D means from every row of the 2D data:

normalized = data - means

Because data has shape (n_rows, n_cols) and means has shape (n_cols,), NumPy broadcasts means across the rows. The loop disappears, and the operation runs in compiled C code.

Vectorization also enables more complex operations like outer products and meshgrid-style calculations. For instance, computing the outer sum of two vectors:

x = np.array([1, 2, 3])
y = np.array([10, 20])
outer_sum = x[:, np.newaxis] + y  # shape (3, 2)

Here x[:, np.newaxis] reshapes x to (3, 1), and y remains (2,). Broadcasting produces a 3×2 matrix. This pattern is ubiquitous in scientific computing, from distance matrices to polynomial evaluation.

Memory and Performance Implications

Broadcasting and vectorization are not just about writing less code; they directly affect memory usage and execution speed. When you broadcast, NumPy does not physically expand the smaller array. It uses a stride trick to simulate the expansion, so no extra memory is allocated for the broadcasted values. This is why matrix + row is efficient even when matrix is large.

However, the result of a broadcast operation is a new array that occupies memory. If you chain many operations, intermediate results can accumulate. For example, a + b + c creates a temporary array for a + b before adding c. In practice, NumPy's memory allocator handles this well, but for very large arrays, you may want to use in-place operations like a += b to avoid creating a new array.

Vectorization also improves cache locality. Operations on contiguous arrays allow the CPU to load blocks of memory into cache and process them sequentially, which is much faster than random access patterns typical of Python loops. This is particularly important when working with large datasets where memory bandwidth becomes the bottleneck.

That said, broadcasting is not always the right choice. If you need to perform an operation that genuinely depends on the index of each element, such as a cumulative sum with a custom rule, you may need to use np.cumsum, np.frompyfunc, or fall back to a loop. The key is to recognize when your operation can be expressed as a combination of element-wise operations and reductions.

Common Broadcasting Mistakes and How to Avoid Them

One of the most frequent errors is attempting to broadcast arrays with incompatible shapes. The error message operands could not be broadcast together with shapes (3,2) (3,) is a clear signal. To fix it, you often need to reshape one of the arrays. For example, if you have a matrix of shape (3, 2) and a vector of shape (2,), you can add the vector to each row directly because the trailing dimensions match. But if you have a vector of shape (3,) and want to add it to each column, you need to reshape it to (3, 1):

matrix = np.random.rand(3, 2)
col_vec = np.array([1, 2, 3])
# This fails: matrix + col_vec
# Correct: reshape to column vector
result = matrix + col_vec[:, np.newaxis]

Another mistake is assuming that broadcasting will automatically handle any shape difference. The rules are strict: dimensions must be equal or one must be 1. A shape (4, 3) and (4,) will fail because the trailing dimension 3 does not match 4. Always check the shapes with .shape and use np.newaxis or reshape to align them explicitly.

A subtle issue arises with integer vs. float arrays. Broadcasting does not change the data type; if you add a float scalar to an integer array, the result is float, but if you add two integer arrays, the result is integer and may overflow silently. Use dtype carefully when mixing types.

Advanced Broadcasting Patterns

Beyond simple alignment, broadcasting can be combined with np.newaxis and reshape to create powerful patterns. For example, computing a distance matrix between two sets of points:

points_a = np.array([[1, 2], [3, 4]])  # shape (2, 2)
points_b = np.array([[5, 6], [7, 8], [9, 10]])  # shape (3, 2)
# Compute squared Euclidean distance between each pair
diff = points_a[:, np.newaxis, :] - points_b[np.newaxis, :, :]  # shape (2, 3, 2)
sq_dist = np.sum(diff**2, axis=2)
dist = np.sqrt(sq_dist)

Here points_a[:, np.newaxis, :] has shape (2, 1, 2) and points_b[np.newaxis, :, :] has shape (1, 3, 2). Broadcasting yields a (2, 3, 2) array, and summing along the last axis gives a (2, 3) distance matrix. This is a fully vectorized replacement for a nested loop.

Another advanced use is applying a mask or condition to a subset of an array. Broadcasting lets you combine a boolean mask with an array of values to assign selectively:

arr = np.arange(10)
mask = (arr % 2 == 0)
arr[mask] = arr[mask] * 10  # double the even numbers

This works because the mask is broadcast to the shape of the indexed result. Understanding broadcasting at this level allows you to write concise, efficient code for data transformations, simulations, and machine learning preprocessing.

When you encounter a situation where broadcasting seems impossible, consider whether you can reshape the arrays to introduce a dimension of size 1. The np.newaxis (or None) index is your primary tool. For example, converting a 1D array to a column vector is as simple as arr[:, None]. This small change often unlocks broadcasting for operations that would otherwise require loops or np.tile.

Finally, remember that broadcasting works with any NumPy ufunc, not just arithmetic. Functions like np.maximum, np.where, and np.logical_and all support broadcasting. This means you can vectorize conditional logic and comparisons just as easily as arithmetic. For instance, clipping values between a lower and upper bound can be done with np.clip, but you can also use np.maximum(lower, np.minimum(arr, upper)) to achieve the same effect with broadcasting.

Mastering python numpy broadcasting and vectorization is a matter of internalizing the shape rules and practicing with real data. Once you can think in terms of array shapes and broadcasting, you will write code that is both faster and more readable than loop-based alternatives.
