python opencv canny edge detection and contours: Practical U

python opencv canny edge detection and contours requires a clear understanding of the core syntax, runtime behavior, and practical implementation patterns demonstrated in the examples below.

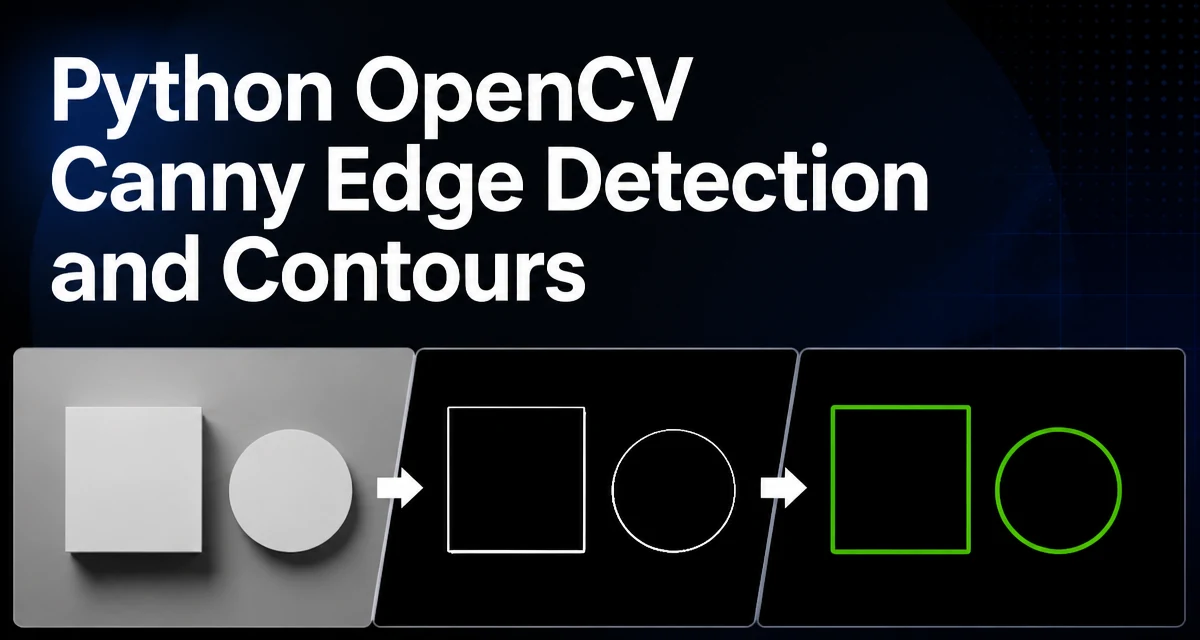

When you need to isolate object boundaries in an image, the combination of Canny edge detection and contour extraction is one of the most direct approaches in OpenCV. The typical workflow is: load the image, convert it to grayscale, reduce noise with a blur, apply cv2.Canny to get a binary edge map, then pass that edge map to cv2.findContours to obtain vectorized outlines. This article walks through that pipeline in Python, explains the key parameters, and shows how to filter contours for practical use.

The Standard Pipeline for Canny Edge Detection and Contours

Every contour extraction starts with a binary image where edges are white (255) and everything else is black (0). Canny edge detection produces exactly that. The following code shows the minimal sequence:

import cv2

image = cv2.imread('objects.jpg')
gray = cv2.cvtColor(image, cv2.COLOR_BGR2GRAY)
blurred = cv2.GaussianBlur(gray, (5, 5), 0)
edges = cv2.Canny(blurred, 50, 150)
contours, hierarchy = cv2.findContours(edges, cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_SIMPLE)

The contours list contains each contour as a NumPy array of points. hierarchy encodes the parent-child relationships between contours, which matters when you have nested shapes. This pipeline is the foundation for many higher-level tasks like object detection, shape analysis, and OCR preprocessing.

Preparing the Image for Canny Edge Detection

Canny operates on a single-channel image, so you must convert from BGR to grayscale first. Color information is irrelevant for edge strength; the algorithm computes gradients based on intensity changes.

Gaussian blur is strongly recommended before Canny. It suppresses high-frequency noise that would otherwise create false edges. The kernel size and sigma control the amount of smoothing. A (5, 5) kernel with sigma=0 (auto-computed from the kernel) is a common starting point. Larger kernels blur more and remove finer details, which can be useful when your objects have textured surfaces.

blurred = cv2.GaussianBlur(gray, (5, 5), 0)

If you skip blurring, you will often see many small, fragmented edges that make contour extraction noisy. The blur step is cheap compared to the cost of dealing with spurious contours later.

Applying cv2.Canny and Tuning Its Thresholds

The cv2.Canny function has two mandatory threshold parameters: threshold1 and threshold2. These are used by the hysteresis procedure to decide which edges are strong, weak,, or non-edges. Edges with gradient magnitude above threshold2 are kept; those below threshold1 are discarded; those in between are kept only if they are connected to a strong edge.

edges = cv2.Canny(blurred, threshold1=50, threshold2=150)

A low threshold1 will detect more edges, including weak ones that may be noise. A high threshold2 will keep only the most prominent edges. The ratio between the two is often set to 2:1 or 3:1. For example, (50, 150) is a common default. You may need to adjust these values based on your image contrast and lighting.

There are two additional optional parameters:

apertureSize: the size of the Sobel kernel used for gradient computation. Default is 3. Larger apertures smooth the gradient and may miss thin edges.
L2gradient: if True, uses the more accurate L2 norm for gradient magnitude; if False (default), uses the faster L1 norm. For most applications, the default is sufficient.

To find the right thresholds, start with a wide range and inspect the edge map. If you see too many broken edges, increase threshold1. If you see edges from noise, increase threshold2. There is no universal value; it depends on the image content.

Finding Contours with cv2.findContours

cv2.findContours takes the binary edge map and returns a list of contours. The function signature changed between OpenCV 3 and 4. In OpenCV 4, it returns two values: contours and hierarchy. In older versions, it returned three values, with the source image being modified. If you are using OpenCV 4, the source image is not modified, so you can reuse edges if needed.

contours, hierarchy = cv2.findContours(edges, cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_SIMPLE)

The second argument is the retrieval mode:

cv2.RETR_EXTERNAL: retrieves only the outermost contours. Useful when you only need object boundaries and not internal holes.
cv2.RETR_LIST: retrieves all contours without any hierarchy.
cv2.RETR_TREE: retrieves all contours and builds a full hierarchy tree.
cv2.RETR_CCOMP: organizes contours into two levels: outer and inner holes.

For most object detection tasks, RETR_EXTERNAL is sufficient. If you need to detect holes inside objects, use RETR_TREE and inspect the hierarchy.

The third argument is the approximation method:

cv2.CHAIN_APPROX_NONE: stores every point along the contour. This is memory-heavy and rarely needed.
cv2.CHAIN_APPROX_SIMPLE: compresses horizontal, vertical, and diagonal segments, keeping only their endpoints. This reduces memory and speeds up subsequent processing.

CHAIN_APPROX_SIMPPLE is almost always the right choice. For example, a rectangle will be represented by only four points instead of hundreds.

Drawing Contours and Understanding Hierarchy

To visualize the detected contours, use cv2.drawContours. You can draw all contours or a subset by passing an index list.

output = image.copy()
cv2.drawContours(output, contours, -1, (0, 255, 0), 2)

The -1 index draws all contours. You can also draw a specific contour by passing its index.

The hierarchy array is shaped as (1, N, 4) where each contour has four values: [next, previous, first_child, parent]. A value of -1 means no such relation. This is essential when you need to distinguish outer boundaries from inner holes. For example, with RETR_TREE, the parent of an inner hole is the outer contour that contains it.

for i, contour in enumerate(contours):
    if hierarchy[0][i][3] == -1:
        # This is an outer contour (no parent)
        cv2.drawContours(output, [contour], -1, (0, 255, 0), 2)

Understanding hierarchy lets you filter out nested contours or select only the outermost ones without relying on area thresholds.

Filtering Contours by Area, Aspect Ratio, or Hierarchy

Raw contours often include tiny noise blobs or unwanted shapes. Filtering is a critical step. The most common filter is area:

min_area = 500
filtered = [c for c in contours if cv2.contourArea(c) > min_area]

You can also use the bounding rectangle to filter by aspect ratio, which helps isolate specific shapes like license plates or barcodes.

for c in filtered:
    x, y, w, h = cv2.boundingRect(c)
    aspect_ratio = w / h
    if 2 < aspect_ratio < 4:
        # likely a rectangular object

For more complex shapes, you can use cv2.approxPolyDP to approximate the contour with a polygon and then count vertices to classify shapes (triangle, square, pentagon, etc.).

epsilon = 0.02 * cv2.arcLength(c, True)
approx = cv2.approxPolyDP(c, epsilon, True)
if len(approx) == 4:
    # quadrilateral

Hierarchy-based filtering is another approach. If you only want contours that are not contained inside another contour, select those with parent == -1. This is more robust than area thresholds when object sizes vary.

Performance and Memory Considerations for Contour Processing

Canny edge detection and contour extraction can be computationally expensive, especially on high-resolution images. The Canny algorithm involves multiple passes: Gaussian blur, Sobel gradient computation, non-maximum suppression, and hysteresis. The cost scales with the number of pixels.

If you are processing video frames in real time, consider reducing the resolution before running Canny. Downscaling by a factor of two reduces the pixel count by four, which often speeds up the entire pipeline significantly. You can also use a smaller Gaussian kernel, but be careful not to lose important edges.

Contour extraction itself is usually fast, but the number of contours and the number of points per contour affect memory. CHAIN_APPROX_SIMPLE reduces memory usage substantially. If you only need the outer boundaries, RETR_EXTERNAL avoids building a hierarchy tree, which also saves memory.

Another practical concern is that cv2.findContours expects an 8-bit single-channel image. Passing a binary image from cv2.Canny is ideal. If you pass a grayscale image with multiple intensity levels, the function treats non-zero pixels as foreground, which may produce unexpected contours. Always ensure the input is truly binary.

For large images, you may also want to process in tiles if the full image does not fit in memory. However, that introduces edge artifacts, so it is usually better to downscale or use a more efficient contour retrieval mode.

Finally, be aware that OpenCV's contour functions are not thread-safe. If you are processing multiple images in parallel, use separate cv2 contexts or serialize the contour extraction step.
